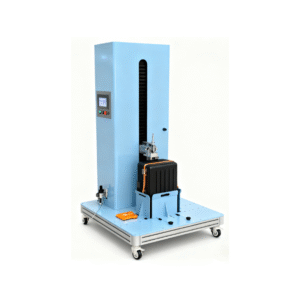

Luggage Handle Smoothness Tester

Model: BF-C3 Luggage Handle Smoothness Tester

Product Purpose:

During the test, the specimen is stretched to evaluate the clearance, loosening,connection rod failure, deformation, and other performance indicators of the telescopic handle. Thistester is specifically designed for conducting reciprocating fatigue tests on luggage telescopichandles. It is equipped with an additional telescopic handle lock testing function, enablingindependent fatigue testing of the handle lock as well as comprehensive testing. For the motor-driven model: segmented testing and stepless telescopic handle testing can be implementedaccording to customer-specific requirements. Additionally, the displacement and duration of tensionand compression can be set based on customer needs.

Compliance Standards:

QB/T2919-2018 and QB/T2155-20108 Travel Luggage

Product Specifications

1. Control Method: PLC control with human-machine interface (HMI) operation.

2. Specimen Fixing Device: Luggage fixing clamp base.

3. Telescopic Handle Gripper: Equipped with an automatic opening/closing device for the handle lock.

4. Telescopic Handle Motion Device: Driven by a servo motor with synchronous belt transmission, capable of reciprocating motion. The movement speed (0-30 cycles per minute) is adjustable, and the pause time during the test can be set.

5. Test Stroke: 20~100 cm (adjustable) with a displacement recording device. It can record and set displacement, with a tolerance controlled within ±1 mm.

6. Support Frame: Height not less than 1500 mm, equipped with guide rails for extension and compression strokes.

7. Telescopic Handle Lock Switch Device: Can be installed according to different types or positions of telescopic handle locks.

8. Segmented testing is available.

9. Automatic counting function for extension-compression cycles.

10. Capable of testing both the telescopic handle and the handle lock simultaneously.

11. Extension Speed: 0~30 cm/sec (adjustable).

12. Compression Speed: 0~30 cm/sec (adjustable).

13. Test Cycles: 1~999,999 (automatic shutdown upon completion).

14. Test Power: Servo motor.

15. Machine Dimensions: 100100210 cm (LWH).

16. Machine Weight: 180 kg.
