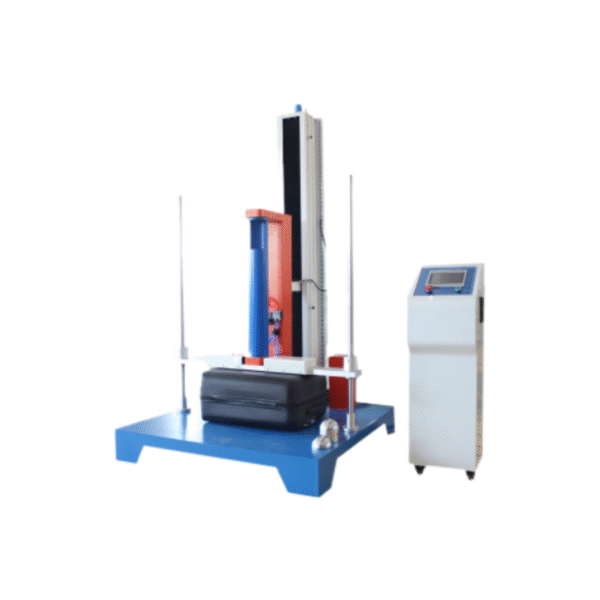

Luggage Drop Impact Tester

Model: BF-C9  Luggage Drop Impact Tester

Product Application

Luggage Drop Impact Tester ：This product is suitable for testing the impact resistance of formed luggage and similar materials. The tester uses an impact head of specified weight, which is adjusted to a certain height to fall freely and strike the test sample. The impact resistance is evaluated based on the sample’s damage condition.

Test Standards

This instrument complies with the luggage test standards: JIS K6745, A5430, QB/T 2918-2018, and QB/T 2155-2018.

Technical Parameters

• Maximum Height: 1500mm
• Drop Ball Control Method: DC Electromagnetic Control
• Impact Head Weight: 2000g, 3000g, 4000g, 5000g (one piece each)
• Impact Head Dimensions: Cylinder diameter 100±2mm, bottom radius 50±2mm
• Machine Dimensions (L×W×H): 120cm × 120cm × 210cm
• Power Supply: AC 220V 2A (Note: Original “15” is assumed to be a typo; adjusted to comply with electrical parameter conventions for testing instruments)
