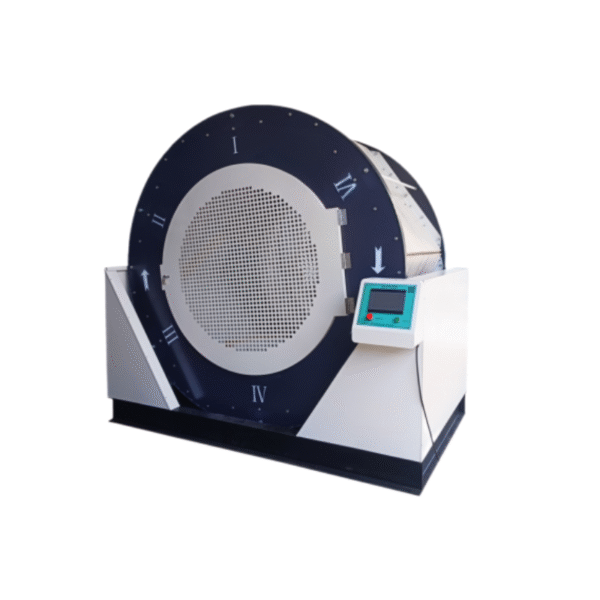

BF-C8 Luggage Drum Impact Tester

Product Purpose
Designed and manufactured in accordance with ISTA and GB standards, this product is specifically used to simulate rolling, impact, and other transportation-related conditions for travel luggage and other packaging cases. The luggage is subjected to rolling and impact inside the roller. After completing the specified number of rotations, the damage condition of the luggage is inspected to provide a basis for product improvement.
Compliance Standards
QB/T4116-2018 Test Method for Roller Drop of Luggage; QB/T2155-2018 Travel Luggage

Edit Content
Category:

Model: BF-C8 Luggage Drum Impact Tester

Product Purpose

Designed and manufactured in accordance with ISTA and GB standards, this product is specifically used to simulate rolling, impact, and other transportation-related conditions for travel luggage and other packaging cases. The luggage is subjected to rolling and impact inside the roller. After completing the specified number of rotations, the damage condition of the luggage is inspected to provide a basis for product improvement.

Compliance Standards

QB/T4116-2018 Test Method for Roller Drop of Luggage; QB/T2155-2018 Travel Luggage

Product Specifications

  1. Drum Inner Diameter: 2200 mm
  2. Drum Depth: 1250 mm
  3. Drum Rotational Speed: 2 rpm (revolutions per minute)
  4. Obstacle Specifications: 3 sets of 96° obstacles, 1 conical block, 1 transverse baffle
  5. Maximum Specimen Dimensions: 1000×700×400 mm
  6. Counter: 0~99,999 cycles (programmable with automatic shutdown)
  7. Transmission System: Equipped with Taiwan Changyi variable-speed motor for stable operation
  8. Machine Dimensions: 250×160×250 cm (L×W×H)
  9. Power Supply: 220 V 50 Hz
  10. Machine Weight: 2860 kg
