Luggage Walking Test Machine

Model: Luggage Walking Test Machine

Application

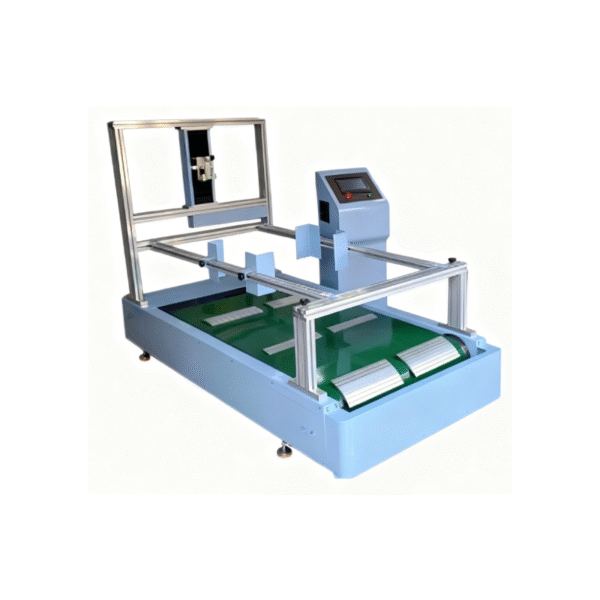

Luggage Walking Test Machine：This testing machine is designed for travel suitcases and bags equipped with wheels. After loading a specified weight, the conveyor belt-type tester simulates friction and impact between bump plates and the sample’s wheels. It is used to inspect whether the wheels and telescopic rods of luggage are damaged during movement (suitable for testing 2-wheel and 4-wheel telescopic suitcases).

Compliance Standards

Luggage Walking Test Machine

• QB/T2920-2018: Luggage Walking Test Method

• QB/T2155-2018: Travel Luggage

Specifications

1. Control Mode: Color touch screen (user-friendly), human-machine interface operation

2. Test Functions: Adjustable interval time during testing; with memory function

3. Test Speed: 0 – 5 km/h (Adjustable)

4. Auxiliary Functions: Automatic shutdown upon detection of wheel detachment during testing

5. Bump Plates: 6 large obstacle blocks, 6 small obstacle blocks

6. Conveyor Belt Specification: Length 3300 mm

7. Telescopic Suitcase Test Angle Adjustment: Quick adjustment via handwheel

8. Overall Dimension: 2050 × 1000 × 1400 mm

9. Net Weight: 326 kg

10. Power Supply: AC 220V 50Hz
