Dynamic Footwear Water Penetration Tester
Dynamic Footwear Water Penetration Tester
Standards:
SATRA TM230, EN 20344, EN ISO 20345
Product Description:
This machine is used to test the dynamic waterproof performance of various finished shoes.
The shoe is mounted on the testing machine, and submerged to a specified depth in a water tank.
The machine bends the forepart of the shoe at a fixed angle and frequency, simulating actual walking in water.
It measures the time and number of bending cycles required for water to penetrate from the outside to the inside of the shoe, evaluating its waterproof performance.
The shoe is mounted on the testing machine, and submerged to a specified depth in a water tank.
The machine bends the forepart of the shoe at a fixed angle and frequency, simulating actual walking in water.
It measures the time and number of bending cycles required for water to penetrate from the outside to the inside of the shoe, evaluating its waterproof performance.
Technical Parameters
- Test Quantity: 2 PCS
- Counter: 0~999,999, two groups for separate counting
- Bending Speed: 60 r/min
- Control System: PLC
- Bending Angle: 25°
- Dimensions: 79 × 60 × 87 cm
- Net Weight: 138 kg
- Power Supply: AC 220V 5A

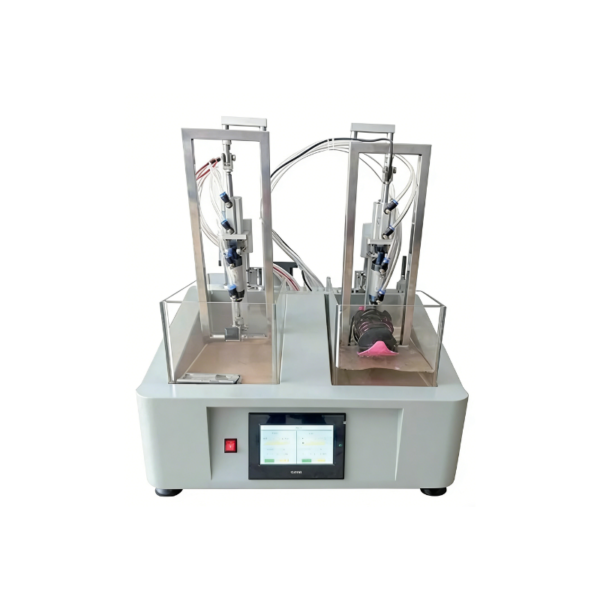

Dynamic Footwear Water Penetration Tester
（Pneumatic）
Standards:
SATRA TM230, EN 20344, EN ISO 20345
Product Description:
This machine is used to test the dynamic waterproof performance of various finished shoes.
The shoe is mounted on the testing machine, and submerged to a specified depth in a water tank.
The machine bends the forepart of the shoe at a fixed angle and frequency, simulating actual walking in water.
It measures the time and number of bending cycles required for water to penetrate from the outside to the inside of the shoe, evaluating its waterproof performance.
The shoe is mounted on the testing machine, and submerged to a specified depth in a water tank.
The machine bends the forepart of the shoe at a fixed angle and frequency, simulating actual walking in water.
It measures the time and number of bending cycles required for water to penetrate from the outside to the inside of the shoe, evaluating its waterproof performance.
Technical Parameters
- Test Quantity: 2 PCS
- Counter: 0~999,999, two groups for separate counting
- Bending Speed: 60 r/min
- Control System: PLC
- Bending Angle: 25°
- Dimensions: 79 × 60 × 87 cm
- Net Weight: 138 kg
- Power Supply: AC 220V 5A
