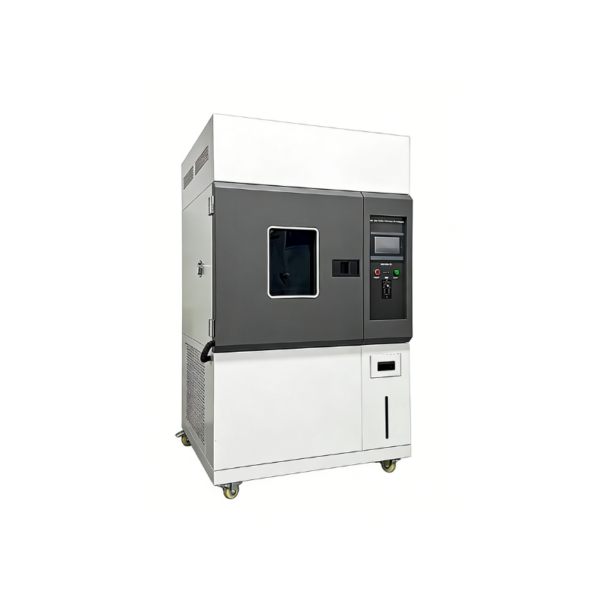

Xenon Arc Weather Meter

Model: BF-FS20  Xenon Arc Weather Meter

Overview

Xenon Arc Weather Meter：

1. It adopts a xenon arc lamp that simulates the full solar spectrum to reproduce the destructive light waves present in different environments, and can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control.
2. The SN-type xenon arc lamp test chamber can be used for the selection of new materials, tests on changing existing materials or evaluating the change in durability after the change of material composition, and can well simulate the changes of materials exposed to sunlight under different environmental conditions.
3. Aging tests are carried out by exposing material samples to the light and thermal radiation of the xenon arc lamp to evaluate the light and weather resistance of certain materials under the action of high-temperature light sources. It is mainly applicable to the testing of automotive materials, coatings, rubber, plastics, pigments, adhesives, fabrics and other products.

Main Technical Parameters

1. Working chamber dimension (mm): 600×500×500 (W×D×H)
2. Outer cabinet dimension (mm): 1120×1050×1730 (W×D×H)
3. Temperature range: 10°C ~ 80°C
4. Humidity range: 65% ~ 98% R.H
5. Black panel temperature: 63°C, 100°C (deviation ±3°C)
6. Temperature fluctuation: ≤±0.5°C
7. Temperature uniformity: ≤±2.0°C
8. Humidity fluctuation: +2% ~ -3% R.H
9. Glass window filter: Borosilicate glass
10. Xenon light source: Imported water-cooled xenon arc light source
11. Xenon lamp power: 1.8KW
12. Total number of lamp tubes: 1 pc
13. Rainfall time: 1 ~ 9999 mins, continuously adjustable
14. Rainfall cycle: 1 ~ 240 mins, interval rainfall adjustable
15. Water spray nozzle diameter: φ0.8mm (with ultra-fine filter in return water to prevent nozzle clogging)
16. Rainfall water pressure: 0.12 ~ 0.15kPa
17. Water spray cycle (spray time / non-spray time): 18mins/102mins or 12mins/48mins (spray time / non-spray time); Spray pressure: 0.12 ~ 0.15MPa
18. Heating power: 2KW
19. Humidification power: 2KW; Illumination cycle: 0 ~ 999 hrs, continuously adjustable; Spectral wavelength: 280nm ~ 800nm; Irradiance range: 200W ~ 800W/m², adjustable
