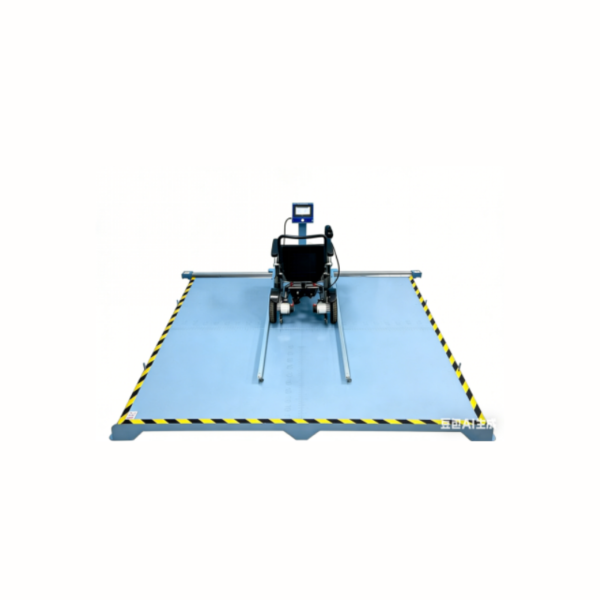

Wheelchair Turning Diameter Tester

Wheelchair Turning Diameter Tester

Purpose

The wheelchair turning radius (diameter) test bench is applicable to wheelchairs with direct turning radius or limited differential steering. It is equipped with a platform and auxiliary devices to form a testing area with a sufficient spacing. Place the wheelchair on the test platform and turn the wheelchair around in the most appropriate method. The test is completed after the wheelchair rotates 180°. It measures the turning diameter or radius in accordance with the provisions of GB 18029.5, so as to verify the turning performance and confirm the actual turning radius of the wheelchair.

Main Technical Parameters

  1. Equipment Purpose: Used for rotation performance testing of wheelchairs.
  2. Compliance Standards: Meets the relevant test clauses specified in GB/T 13800-2009, GB/T 12996-2012 and GB/T 18029.5.
  3. Load Capacity: ≥1000 kg
  4. Test Platform Dimension: 2500 mm (Length) × 2600 mm (Width)
  5. Platform Material: Baked paint steel plate
  6. Graduation Device: 1 set
