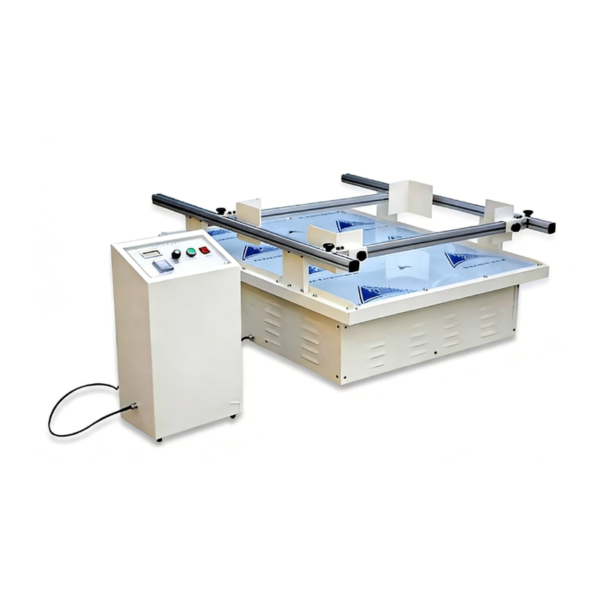

Transport Simulation Vibration Table

Model: BF-H6 Transport Simulation Vibration Table

Main Application:

This machine is applicable to simulated transportation testing of products such as toys, lighting, electronics, furniture, gifts, ceramics and packaging, complying with American and European transportation standards.

Applicable Standards:

JISZ0232
International transportation standards including EN, ANSI, UL, ASTM and ISTA

Edit Content

Model: BF-H6 Transport Simulation Vibration Table

Main Application:

Applicable Standards:

JISZ0232
International transportation standards including EN, ANSI, UL, ASTM and ISTA

Product Features:

※ Vibration frequency displayed on digital instrument
※ Synchronous silent belt drive with ultra-low noise
※ Guide rail type specimen clamping for easy and safe operation
※ The machine base is made of heavy channel steel with shock-absorbing rubber pads, featuring easy installation, stable operation and no need for anchor bolts
※ DC motor speed regulation for stable operation and strong load capacity
※ Rotary vibration (commonly known as horse race type), complying with European and American transportation standards

Main Technical Parameters

Vibration Mode: Rotary type (Horse race type)
Vibration Frequency: 100~300rpm
Max Load Capacity: 100kg
Amplitude: 25.4mm (1 inch)
Effective Worktable Size: 1200×1000mm
Motor Power: 1HP (0.75kW)
Machine Dimension: 1200×1000×650mm
Timer: 0~99H99m
Machine Weight: 100kg
Frequency Display Accuracy: 1rpm
Power Supply: AC220V 10A
