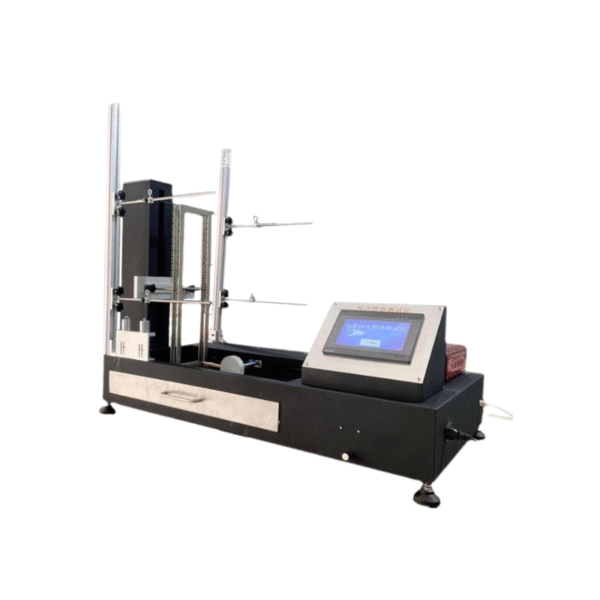

This instrument adopts a frame-type structure. Toy samples are mounted on the frame, and the control system regulates the moving speed and position of the burner nozzle. After igniting the samples with a flame of specified height for a set duration, the combustion status of the samples is observed to evaluate the ignitability and flame spread performance of the toy samples.
Equipped with multiple sample holders, this instrument is suitable for testing different types of toy samples.
EN 71-2 (2020 Edition)
ISO 6940
ISO 6941
EN 6675.3-2014
- Ignition Time Setting Range: 0 ~ 99.99 s, Accuracy: 0.01 s
- Afterflame Timing Range: 0 ~ 999.9 s, Accuracy: 0.1 s
- External Dimensions of EN 71 Sample Holder: 645 × 170 mm
- Internal Dimensions of EN 71 Sample Holder: 600 × 80 mm
Included Test Methods
- Test Method for Children’s Headwear Toys
- Test Method for Children’s Dress-up Costumes and Child-Enterable Toys
- Test Method for Stuffed Soft Toys
- Test Method for Flash Effect on the Surface of Plush Fabrics
- Power Supply: AC 220 V 50 Hz
