Static Fabric Stretch and Recovery Tester

Model: BF-FZ14.1   Static Fabric Stretch and Recovery Tester

Static Fabric Stretch and Recovery Tester ：This instrument is used to measure the elongation and growth properties of low-elastic knitted fabrics.
Standards Complied: ASTM D 2794
Edit Content
Category:

Model: BF-FZ14.1   Static Fabric Stretch and Recovery Tester

Static Fabric Stretch and Recovery Tester ：This instrument is used to measure the elongation and growth properties of low-elastic knitted fabrics.

Purpose

This instrument is used to determine the tensile elongation, deformation growth, elastic recovery and other properties of various fabrics, knitted fabrics, non-woven fabrics and other materials under static constant tension. It simulates the dimensional stability and mechanical properties of fabrics under continuous tension during actual use, providing data support for fabric quality inspection, product development and standard compliance testing.
Standards Complied: ASTM D 2794

Main Technical Specifications & Accessories

  • Test Stations: 2 stations (example for 2 stations)
  • Tension Weights: 2 pcs of 5 lb; 2 pcs of 10 lb

    (Weights include fabric hanging bar and hooks)

  • Specimen Size: 125±3 mm × 500±10 mm

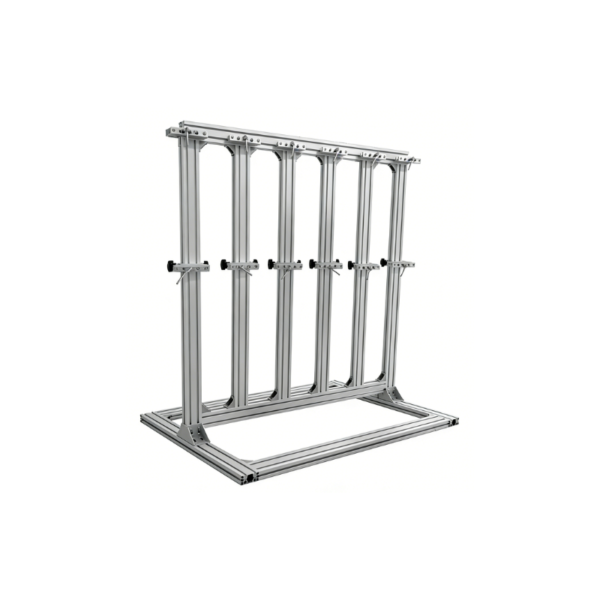

Note: Picture shown is for 6 stations.
