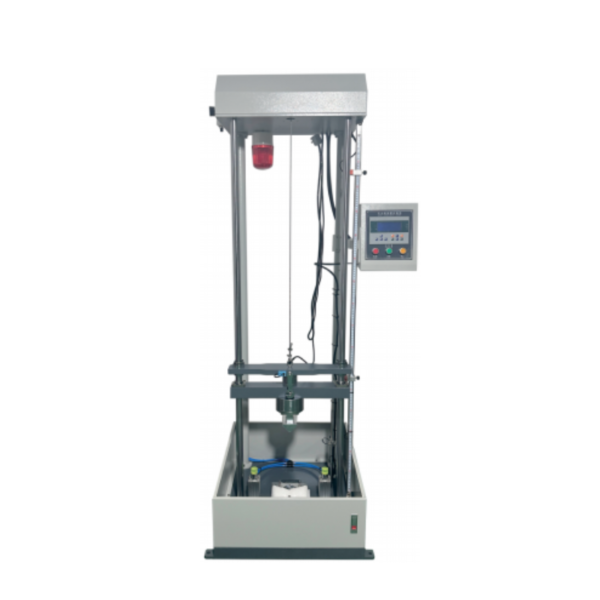

Safety Footwear Impact Tester

According to the standard：
Safety Footwear Impact Tester–
GB/T20991,ENISO20344,AS/NZS2210.1.ANSIZ41,CANZ195
Product Description
This machine conducts impact tests on the steel toe caps of safety shoes by lifting an impact hammer of specified weight to a prescribed height and releasing it instantaneously. After the impact, the degree of indentation on the steel toe cap is inspected to evaluate the safety performance of the safety shoes.
The machine is equipped with an anti-secondary impact function, which effectively eliminates misjudgment of test results caused by secondary impacts.
Technical Parameters
• Impact Hammer Weight: 20±0.2 kg, 22.7±0.32 kg
• Speedometer: LCD
• Impact Height: 1450 mm
• Dimensions: 69 × 65 × 192 cm
• Net Weight: 218 kg
• Power Supply: AC 220V, 50Hz
