ESD Footwear Tester

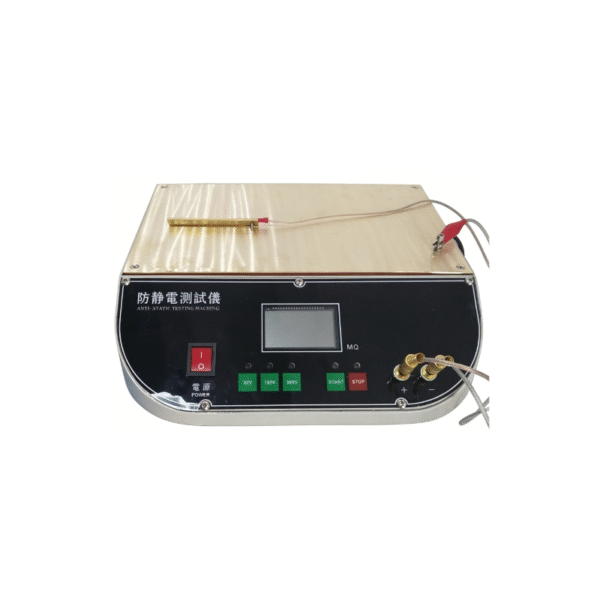

Model: BF-XC5  ESD Footwear Tester

Function:

Technical Parameters

1. Test Voltage: 100~125 VDC; (ISO 20344) 100±2 VDC
2. Test Range: 4.0000/40.00 MΩ
3. Minimum Measurable Resistance: 0.100~0.125 MΩ
4. Short-circuit Test Current: Max. 1.2 mA
5. Low Resistance (Conductance): 0~400.0 μS, ±2% of reading, ±8 digits
6. Open-circuit Terminal Voltage: Max. 4 V
7. AC Voltage Measurement: 0~400 V, 50/60 Hz, ±3% of reading, ±8 digits
8. Input Resistance: 170 MΩ
9. Display: 4000-digit digital display, LCD bar graph/42 segments, with backlight
10. Internal Electrode Material: Steel balls with diameter of 5 mm
11. External Electrode Material: Steel plate
12. Weight: 13 KG (including 4 KG of steel balls)

Compliance Standards
