Pneumatic Tablet Press

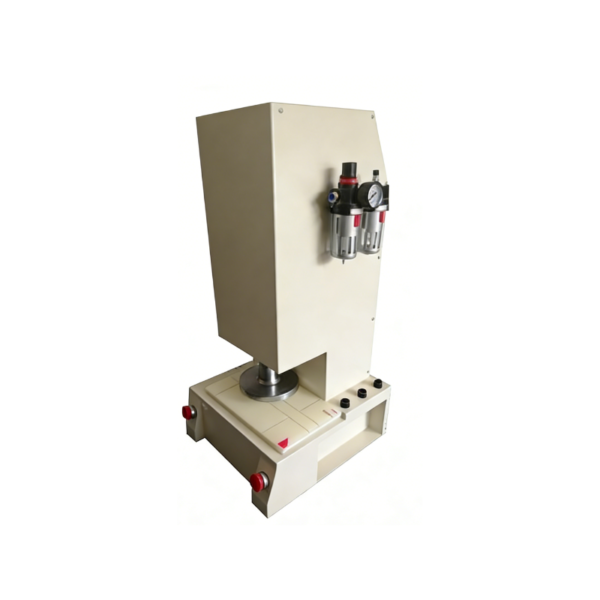

Model: BF-FZ27 Pneumatic Tablet Press
Pneumatic Tablet Press , a new type of bench-top press machine equipped with a 125mm air cylinder, a 50mm cutting thickness and a 125×125mm cutting table. It can generate a pressure of 3000kg under an air pressure of 100psi, with safety two-button operation. Special-shaped punching dies can be provided as required. A laboratory standard air compressor is required for use.
Compliant Standards
ASTM D3776/2646, ISO 3801, BS 3424/2471, BS EN 12127, M&S P65/65A
Model: BF-FZ27 Pneumatic Tablet Press
Pneumatic Tablet Press , a new type of bench-top press machine equipped with a 125mm air cylinder, a 50mm cutting thickness and a 125×125mm cutting table. It can generate a pressure of 3000kg under an air pressure of 100psi, with safety two-button operation. Special-shaped punching dies can be provided as required. A laboratory standard air compressor is required for use.
Technical Specifications
Booster cylinder: 3 ton
Press plate diameter: 150mm
Air pressure: 4kg/cm²-6kg/cm²
Overall dimension (L×W×H): 400×430×900mm
Weight: 110KG
Press plate diameter: 150mm
Air pressure: 4kg/cm²-6kg/cm²
Overall dimension (L×W×H): 400×430×900mm
Weight: 110KG
Optional Accessories
A Round punching die: 100cm² (Dia.113mm/4.44in), suitable for European fabric gram weight system
B Round punching die: 68.53mm (Dia.2.689in), suitable for American fabric gram weight system
C Round punching die: Dia.38mm/12cm², suitable for Martindale Abrasion and Pilling Tester
D Round punching die: (Dia.140mm/154cm²), suitable for Martindale Abrasion and Pilling Tester
B Round punching die: 68.53mm (Dia.2.689in), suitable for American fabric gram weight system
C Round punching die: Dia.38mm/12cm², suitable for Martindale Abrasion and Pilling Tester
D Round punching die: (Dia.140mm/154cm²), suitable for Martindale Abrasion and Pilling Tester
Compliant Standards
ASTM D3776/2646, ISO 3801, BS 3424/2471, BS EN 12127, M&S P65/65A
