ISO/TR 24496:2017, GB/T 38733-2020, BS EN 1335-1:2020, ANSI/BIFMA X5.1-2017 2.5

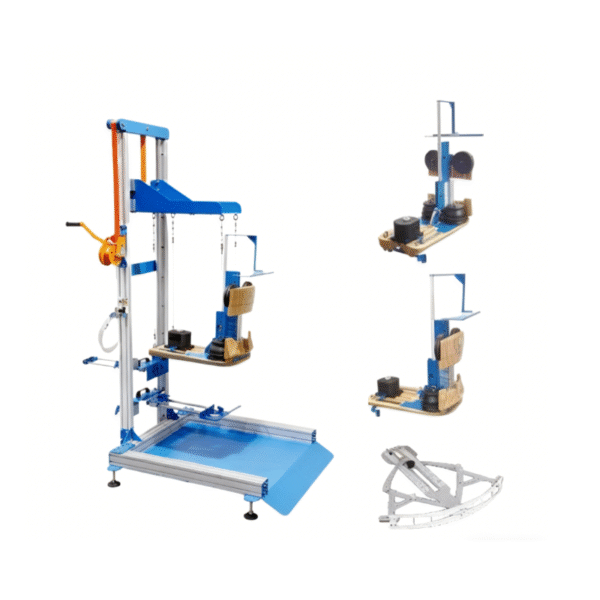

- The height of the CMD is adjusted via a hand crank winch with self-locking function, allowing the CMD to be locked at any desired height position.
- Equipped with an independent sample support platform, the horizontal state of the platform can be adjusted by modifying the height of the supporting feet.
- The fixture is suspended and supported by four independent stainless steel cables at four points, ensuring that the CMD remains horizontal even under a horizontal force of 40 Newtons.
- Universal foot pads are adopted for the equipment, enabling the minimum distance between the equipment and the ground to exceed 80 mm, which facilitates horizontal adjustment of the equipment and forklift handling.
- CMD Dimensions: 618 × 381 × 657 mm; Net Weight: 64 kg (Complies with standard requirements)
- Air Supply: Not less than 0.3 MPa
- Adjustable Height from CMD Seat Bottom to Test Platform: 130–900 mm
- Effective Width of Sample Support Platform: 800 mm
- Overall Dimensions of Equipment: 1450 × 980 × 2085 mm; Net Weight (Including CMD): 196 kg
