Office Chair Back Durability Tester

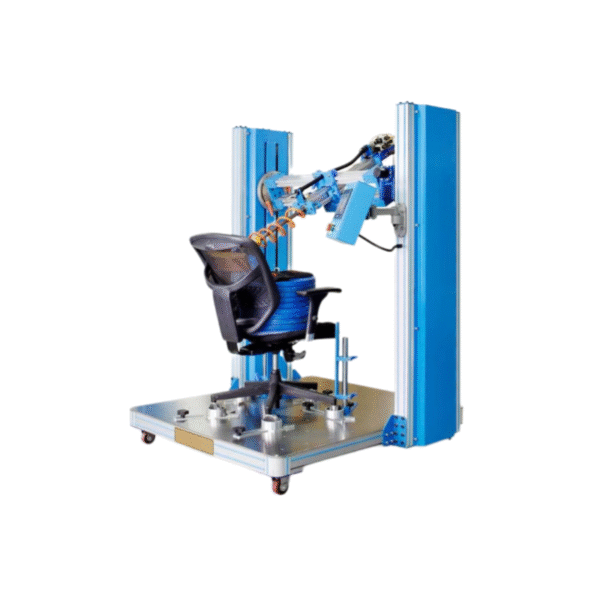

Model: BF-C4  Office Chair Back Durability Tester –                         Forward-pushing Type

Standards

  1. Complies with QB/T 2280-2016 Clause 6.6.8
  2. Not applicable to the back durability test of Class 1 and Class 2 seating products specified in QB/T 2280-2016 Clause 6.6.9
  3. Not applicable to the back durability test of Class 1 and Class 2 seating products specified in ANSI/BIFMA X5.1-2017 Clause 15
  4. For single-seat seating products specified in BIFMA X5.4-2020 Clause 7, a matching fixture is required
Edit Content
Category:

Model: BF-C4  Office Chair Back Durability Tester – Forward-pushing Type

Standards

  1. Complies with QB/T 2280-2016 Clause 6.6.8
  2. Not applicable to the back durability test of Class 1 and Class 2 seating products specified in QB/T 2280-2016 Clause 6.6.9
  3. Not applicable to the back durability test of Class 1 and Class 2 seating products specified in ANSI/BIFMA X5.1-2017 Clause 15
  4. For single-seat seating products specified in BIFMA X5.4-2020 Clause 7, a matching fixture is required

Parameters

  1. Cylinder: Output force: 30–150 kgf; Maximum stroke: 500 mm
  2. Counter: 6-digit; Equipped with stop/power-off memory function to prevent test data loss
  3. Speed: Adjustable from 10 to 25 cycles per minute
  4. Sample: Maximum allowable installation dimension: ≤ 850 × 850 mm
  5. Overall Dimensions: 1440 × 1400 × 1780 mm; Weight: 448 kg
  6. Air Supply: Air pressure: ≥ 0.5 MPa; Air flow: ≥ 800 L/min; The air supply shall be filtered for water removal and dried
  7. Power Supply: 220 V, 2 A
