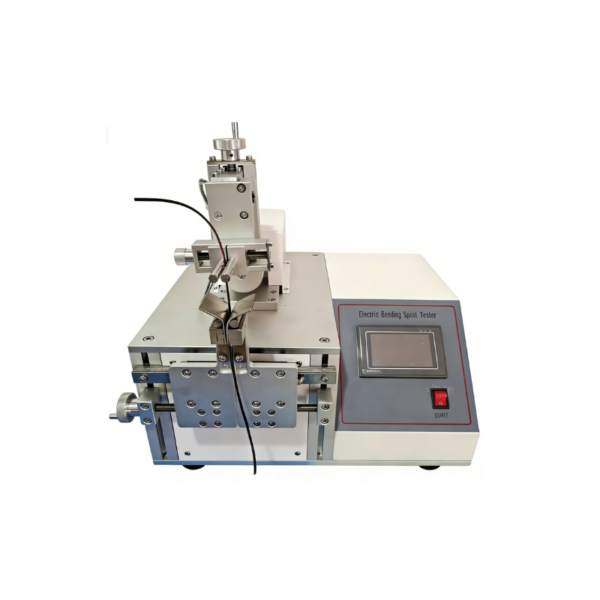

Motorized Bending Testing Machine
Motorized Bending Testing Machine
Main Functions of the Instrument
Motorized Bending Testing Machine ：This instrument is mainly composed of a control system, a force value system and clamping components. Fix the test sample on the clamping components and conduct the bending test in accordance with the requirements. The bending test machine is used to test whether the metal wires or rods that play a role of flexible support in toys break or generate hazardous sharp edges, sharp points and other defects during bending and use.
This instrument complies with the following standards:
GB/T 6675-5.24.8 (This machine implements the national standard test criteria)
EN 71-1-8.13.1
ASTM 963-8.13
Motorized Bending Testing Machine
Main Functions of the Instrument
Motorized Bending Testing Machine ：This instrument is mainly composed of a control system, a force value system and clamping components. Fix the test sample on the clamping components and conduct the bending test in accordance with the requirements. The bending test machine is used to test whether the metal wires or rods that play a role of flexible support in toys break or generate hazardous sharp edges, sharp points and other defects during bending and use.
This instrument complies with the following standards:
GB/T 6675-5.24.8 (This machine implements the national standard test criteria)
EN 71-1-8.13.1
ASTM 963-8.13
Note: For testing in compliance with different standards, the corresponding bending splints specified by the relevant standards shall be replaced. This machine is factory-set to implement the national standard.
Main Technical Parameters and Accessories
Bending outer radius: 11.7 mm ± 0.5 mm
Clamping distance: 50 mm (adjustable); apply force from the end of the sample when the sample is less than 50 mm
Bending force value: 70 N ± 2 N
Bending angle: 120°
Bending cycle: 1 cycle per 2 seconds, 30 cycles in total; 60-second direct interval after every 10 cycles
Instrument weight: 32 kg
Instrument dimensions: 540 mm × 460 mm × 530 mm
Power supply: 220 V, 50 Hz, 300 W
Clamping distance: 50 mm (adjustable); apply force from the end of the sample when the sample is less than 50 mm
Bending force value: 70 N ± 2 N
Bending angle: 120°
Bending cycle: 1 cycle per 2 seconds, 30 cycles in total; 60-second direct interval after every 10 cycles
Instrument weight: 32 kg
Instrument dimensions: 540 mm × 460 mm × 530 mm
Power supply: 220 V, 50 Hz, 300 W
