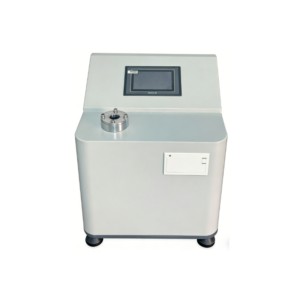

Leather Bursting Strength Tester
Leather Bursting Strength Tester
Standards Compliance:
Leather Bursting Strength Tester：
GB/T 3903.40, QB/T 2712, ISO 3379, DIN 53325, SATRA TM24
Product Description:
The instrument fixes the periphery of the specimen with a clamping frame. The steel probe pushes upward from the inner surface of the leather at an electric-driven speed of 12 mm per minute.
The height reached when cracks appear on the leather surface is defined as the cracking value.
The force displayed on the screen represents the cracking strength.
Technical Parameters
- Specimen diameter after fixing: 25 mm
- Steel ball diameter: 6.25±0.05 mm
- Testing speed: (12±3) mm/min
- Motor: Stepper motor
- Load: 2000 N
- Dimensions: 38×34×45 cm
- Net weight: 30 kg
- Power supply: AC 220 V
