Leakage Needle Tester

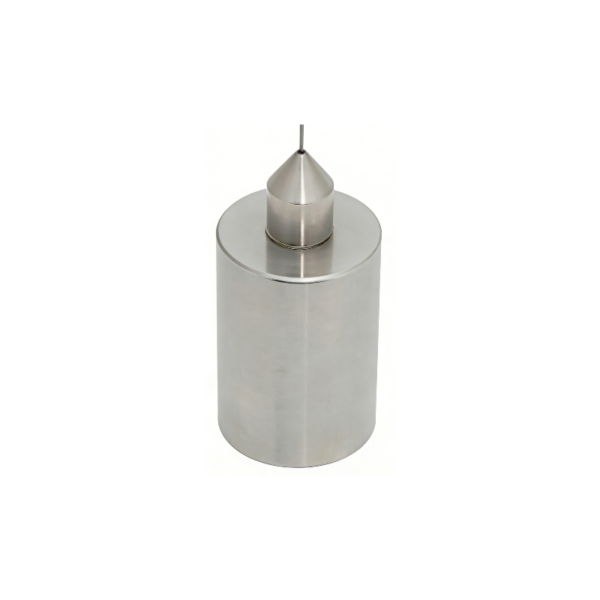

BF-A14 Leakage Needle Tester
Purpose
Leakage Needle Tester :The leak test steel pin is a dedicated tool for inflatable products, primarily used for deflation/ pressure relief and precise inflation. Featuring a thin, rigid pin body that can be inserted into the inflation valve core to open and close the air passage, it serves as an essential accessory for all types of inflatable equipment.
Standards
NM300-1
ISO 8124-15.19 / EN71-18.15 (for leak testing of liquid-filled toys)
GB 6675 A.5.19
ISO 8124-15.19 / EN71-18.15 (for leak testing of liquid-filled toys)
GB 6675 A.5.19
BF-A14 Leakage Needle Tester
Purpose
Leakage Needle Tester :The leak test steel pin is a dedicated tool for inflatable products, primarily used for deflation/ pressure relief and precise inflation. Featuring a thin, rigid pin body that can be inserted into the inflation valve core to open and close the air passage, it serves as an essential accessory for all types of inflatable equipment.
Specifications
Diameter: 1 mm
Top radius: 0.5 mm
Load capacity: 5 N (for leak testing)
Dimensional tolerance: ±0.05 mm
Thread requirement: To be tested with a 0-100 N push-pull gauge
Top radius: 0.5 mm
Load capacity: 5 N (for leak testing)
Dimensional tolerance: ±0.05 mm
Thread requirement: To be tested with a 0-100 N push-pull gauge
Standards
NM300-1
ISO 8124-15.19 / EN71-18.15 (for leak testing of liquid-filled toys)
GB 6675 A.5.19
ISO 8124-15.19 / EN71-18.15 (for leak testing of liquid-filled toys)
GB 6675 A.5.19
