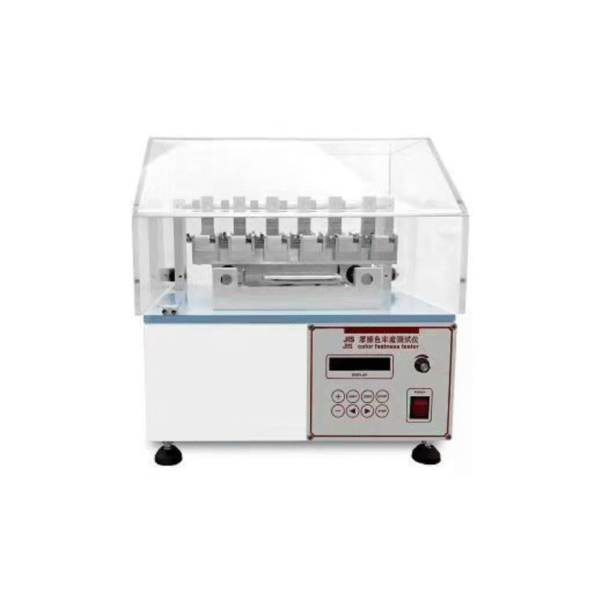

The JIS electric rubbing fastness tester is mainly used for evaluating and determining the color fastness to rubbing of dyed fiber products. Wrap dry or wet white cotton cloth around the rubbing hammer of this tester, then rub the colored test piece with a specified load and number of cycles.
Compare the result against the gray scale to grade the color fastness to rubbing. This instrument can also be used for rubbing tests involving organic solvents.
- Number of Test Samples: 6 sets
- Configuration: Two sets of rubbing heads (200g and 500g)
- Counterweights: 200g, 500g
- Rubbing Speed: 30 mpm
- Number of Rubbing Cycles: 100 cycles
- Test Sample Size: 220×30mm (Two samples can be taken for dry and wet rubbing tests respectively; after testing, dry the samples in an oven below 60℃ and perform grading in a color assessment cabinet)
- White Rubbing Cotton Cloth Size: 50×50mm
- Overall Dimensions (L×W×H): 420×390×405mm
- Weight: 43kg
JIS L 0801, JIS L 0823, JIS L 0849, JIS L 1006, JIS L 1084, JIS K 6328, JIS P 8136, TR 369B, QB/T 1646-2007 Clause 5.11
