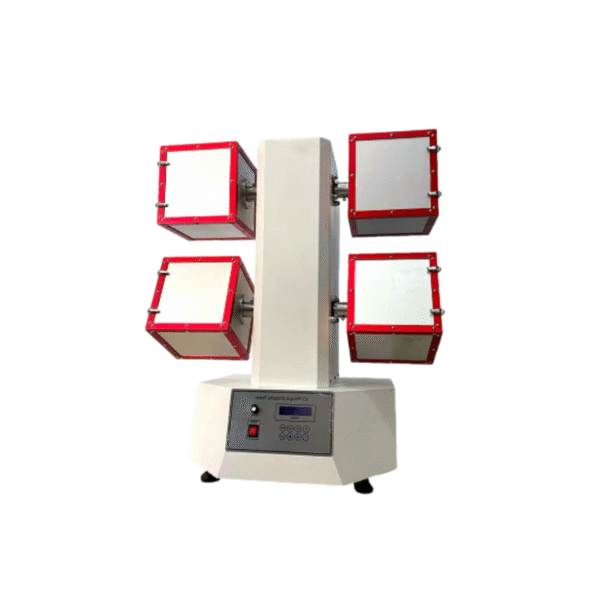

ICI Pilling Tester

Model: BF-FZ22 ICI Pilling Tester

Instrument Function

The ICI Pilling Tester consists of a base and two test chambers.

After rolling for a specified period of time, the test is stopped and the specimens are removed. The surface condition of the specimens is observed and compared with standard reference photographs.

This instrument is designed to test the pilling phenomenon of fabrics caused by friction under zero-pressure conditions, so as to evaluate the pilling resistance of the tested materials. It is applicable to both woven and knitted fabrics.

Compliant Standards:

BS 5811 M&S P18, P18A, P18B, P21A; ISO 12945-1; GB/T 4802.3; JIS L 1076; IWSTM 152; ISO 12945.1; EN ISO 12945-1:2001

Edit Content

Model: BF-FZ22 ICI Pilling Tester

Instrument Function

The ICI Pilling Tester consists of a base and two test chambers.

After rolling for a specified period of time, the test is stopped and the specimens are removed. The surface condition of the specimens is observed and compared with standard reference photographs.

Main Technical Parameters & Accessories

Instrument Dimensions: 875×430×350 mm
Instrument Weight: 40 kg
Template Size: 125×125 mm
Test Environment: Relative Humidity 65±2%; Temperature 20±2 °C
Model Configurations:
- Type A: 2-station ICI Pilling Tester
- Type B: 4-station ICI Pilling Tester
Rotation Speed: 60±2 rpm
Test Cycles:
- Heavy Textiles: 7200 cycles
- Light Textiles: 14400 cycles
Control Mode: Single-chip Microcomputer Control, LCD Display
Test Chamber Specification: 235×235×235 mm
Sampling Template: 125×125 mm
