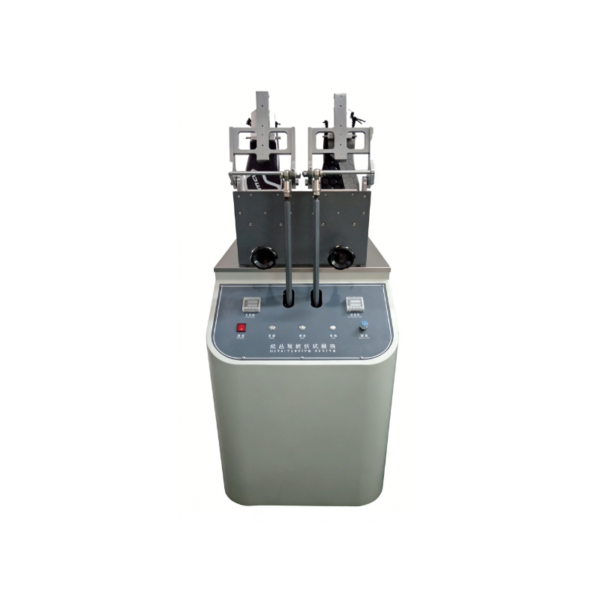

Footwear Flexing Resistance Tester：This machine is used to test the normal-temperature flex resistance of finished shoes and shoe soles.
The principle is to fix the finished shoes or soles on the flexing tester, conduct repeated bending tests at a specified angle and frequency, measure the crack length and debonding length of soles and foxing strips after a certain number of flexes, and observe changes in the upper.
It is equipped with a power-off memory function.

Technical Parameters

• Stations: 2 stations
• Test pieces: 2 pcs
• Bending angle: 0°–60° adjustable
• Testing speed: 230±10 cpm (50~300±10 cpm) adjustable
• Counter: LCD-999,999
• Dimension: 56×77×146 cm
• Weight: 218 kg
• Power supply: AC 220 V 50 Hz
