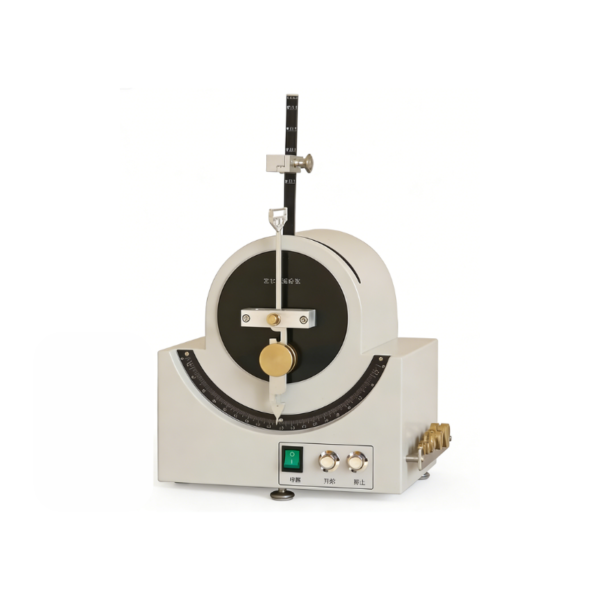

Fabric Softness Tester
Model: BF-FZ16 Fabric Softness Tester
Fabric Softness Tester ：Suitable for determining the stiffness and softness properties of fabrics, collar interlinings, non-woven fabrics, artificial leather, as well as the softness of non-metallic materials such as nylon and plastic threads.
Instrument Features
- Based on the test method of the Gurley type softness tester, apply a certain mechanical external force to the specimen and measure its deformation.
- Simple structure, convenient operation and maintenance.
Model: BF-FZ16 Fabric Softness Tester
Fabric Softness Tester ：Suitable for determining the stiffness and softness properties of fabrics, collar interlinings, non-woven fabrics, artificial leather, as well as the softness of non-metallic materials such as nylon and plastic threads.
Instrument Features
- Based on the test method of the Gurley type softness tester, apply a certain mechanical external force to the specimen and measure its deformation.
- Simple structure, convenient operation and maintenance.
Technical Specifications
- Sample holder swinging speed: W = 2 rpm
- Specimen size: 20 mm × 100 mm
- Maximum swing angle: < 45°
- Weight masses: 1 g, 2 g, 3 g, 4 g, 5 g, 8 g, 20 g
- Weight groove center distance: d₁ = 50 mm, d₂ = 100 mm
- Power supply: AC 220 V 50 Hz 30 W
Dimensions：400 mm × 400 mm × 500 mm (L×W×H)
Weight：8 kg
Compliant Standards：
Professional standards (Ministerial Standards): ZB W04002-86, 5.52
