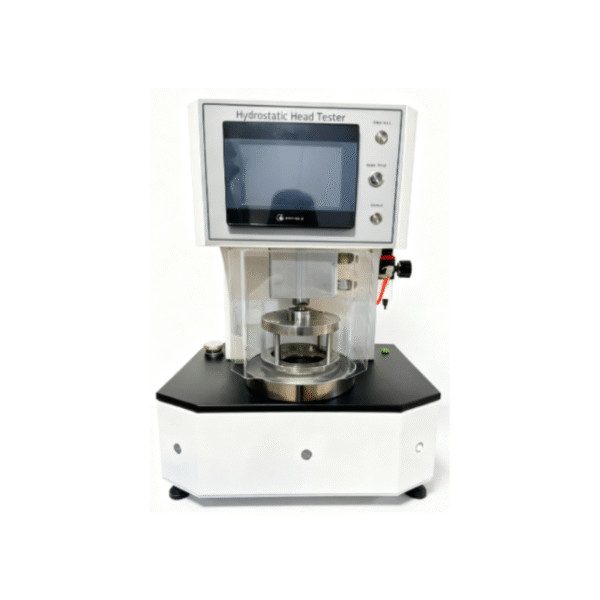

Fabric Hydrostatic Head Tester

Model: BF-FZ32 Fabric Hydrostatic Head Tester

The Fabric Hydrostatic Head Tester is designed to determine the water impermeability of various water-repellent treated fabrics, including canvas, oilcloth, tent cloth, tarpaulin, rainwear fabric and geotextile materials.

Fabric Hydrostatic Head Tester ：Its performance complies with the requirements for testing instruments specified in standards such as GB/T 4744-2013, FZ/T 01004-91, ISO 811, AATCC 127 and JIS L 1092.

Edit Content

Model: BF-FZ32 Fabric Hydrostatic Head Tester

Its performance complies with the requirements for testing instruments specified in standards such as GB/T 4744-2013, FZ/T 01004-91, ISO 811, AATCC 127 and JIS L 1092.

Main Specifications

Model	Measuring Range	Accuracy
-5	1 Pa ~ 50 kPa	0.2%
-10	1 Pa ~ 100 kPa	0.5%
-20	1 Pa ~ 200 kPa	0.5%

Specimen Chuck Area: 100 cm²
Hydrostatic Pressure Rising Rate: 0–30000 Pa/min
Display Accuracy: < 10 Pa
Test Units: Pa; KPa; mmH₂O; cmH₂O
Preset Rates: 6 KPa/min; 6000 Pa/min; 600 mmH₂O/min; 600 cmH₂O/min
Working Modes: 4 modes
Test Modes: Pressure Boost Method, Constant Pressure Method, Constant Pressure Timing Method, Constant Pressure Fixed-time Method
Display Mode: Color LCD Touch Screen, Chinese & English Menu
Water Tank Capacity: 2500 ml
Power Supply: AC 220V ± 10% 50Hz
Power: 200 W
Overall Dimensions: 580×380×780 mm
Net Weight: 75 kg
