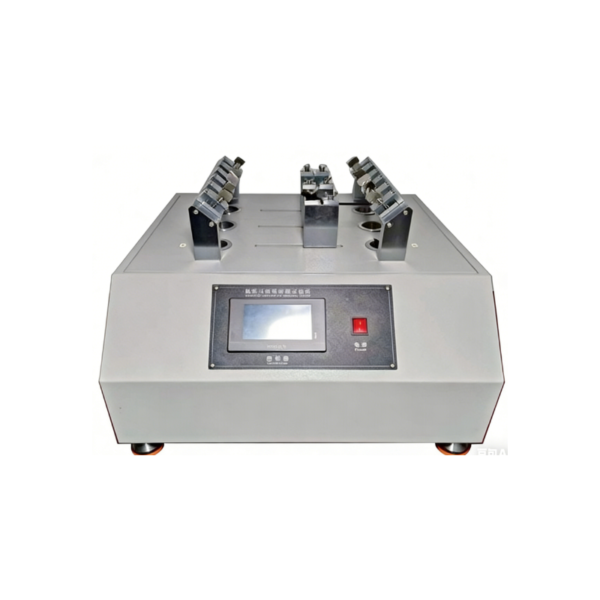

Eyelet and Lacing Abrasion Tester

Standards:

SATRA-TM93

Product Description:

This machine is suitable for all types of shoelaces and eyelets.
One end of the shoelace passes through the eyelet held by a fiberboard.
The shoelace forms 90° with the eyelet and 45° with the fiberboard.
The shoelace is tensioned under standard force and pulled back and forth repeatedly through the eyelet.
The test stops when the shoelace is damaged.
It complies with the technical requirements of SATRA-TM93.

Technical Parameters

Groups: 6 groups
Weight: (455±5) g
Speed: (100±5) cpm
Dimensions: (55×56×40) cm
Stroke: (76±2) mm
Power: 1 AC 220 V, 3 A
