Electric Rubbing Fastness Tester

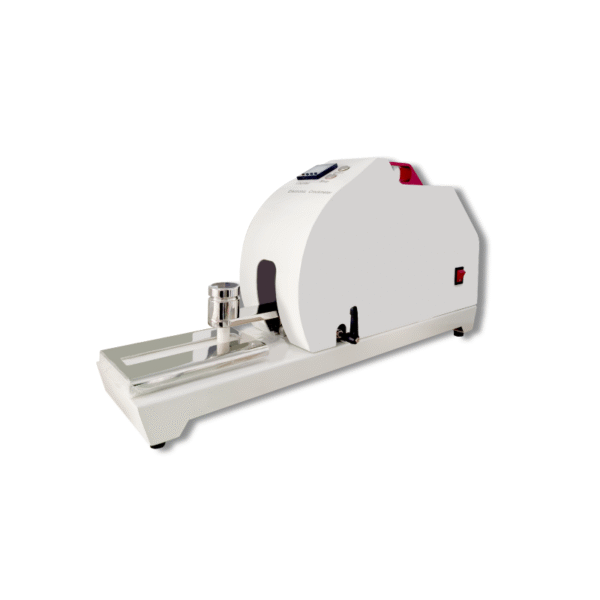

Model: BF-FS12 Electric Rubbing Fastness Tester
Function Introduction
Electric Rubbing Fastness Tester is mainly composed of a control system and a rubbing system. Fix the test sample on the end of the base where sandpaper is attached by using a sample clamp, then place the rubbing head wrapped with white cotton cloth on the sample. After rubbing for the specified number of times, observe the sample and compare it with a gray scale card to evaluate the color staining degree on the white cotton cloth. This tester is used to judge the stability of dyeing or surface coating of fabric samples, providing reference data for material evaluation and selection.
It is applicable to yarns, yarn-dyed fabrics, printed and dyed fabrics and other textiles, as well as all fabrics used on or inside toy products.
Compliant Standards
BS 1006 D02, ISO 10512/D02, AATCC 8/165, GB/T 3920-2008, GB 18401-2010, QB/T 1333-2018, JIS K 6328, JIS L 0815, JIS L 1084
Edit Content
Category: Textile Testing Instruments
Model: BF-FS12 Electric Rubbing Fastness Tester
Function Introduction
Electric Rubbing Fastness Tester is mainly composed of a control system and a rubbing system. Fix the test sample on the end of the base where sandpaper is attached by using a sample clamp, then place the rubbing head wrapped with white cotton cloth on the sample. After rubbing for the specified number of times, observe the sample and compare it with a gray scale card to evaluate the color staining degree on the white cotton cloth. This tester is used to judge the stability of dyeing or surface coating of fabric samples, providing reference data for material evaluation and selection.
It is applicable to yarns, yarn-dyed fabrics, printed and dyed fabrics and other textiles, as well as all fabrics used on or inside toy products.
Compliant Standards
BS 1006 D02, ISO 10512/D02, AATCC 8/165, GB/T 3920-2008, GB 18401-2010, QB/T 1333-2018, JIS K 6328, JIS L 0815, JIS L 1084
Main Technical Parameters & Accessories
- Rubbing Head Diameter: 16mm±0.1mm
- Test Station: Single station
- Rubbing Stroke: 104/100mm (adjustable), tolerance ±3mm
- Vertical Pressure: 9±0.2N
- Number of Reciprocations per Test: 10 cycles
- Rubbing Speed: 60±1 rpm
- Instrument Weight: 11.42kg (25 lbs) (Note: Revised the unit conversion error of original “21lb”; 11.42kg is approximately equal to 25 lbs)
- Power Supply: 220V, 50Hz
- Standard White Rubbing Cloth: 50×50mm, desized, bleached cotton fabric without fluorescent brighteners and finishing agents
- Standard Staining Gray Scale Card: Optional (to be purchased separately)
- Standard Light Source Color Matching Cabinet: Optional (to be purchased separately)
