Elastic Band Fatigue Testing Machine
Elastic Band Fatigue Testing Machine
Standards
Elastic Band Fatigue Testing Machine：
GB/T 3903.3 Footwear – Test methods for general products – Peel strength test
BS 1870, BS 4676, SATRA TM 404
Product Description

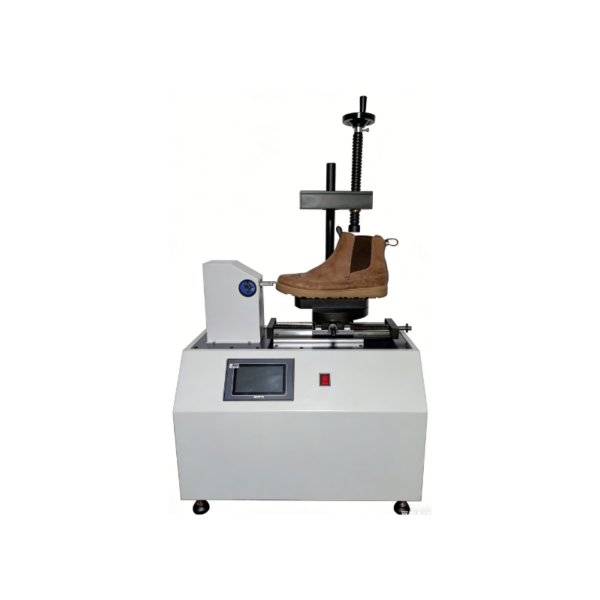

This machine is used to test the peel strength between the sole and upper of finished shoes.
The principle is as follows: the finished shoe, fitted with a shoe last, is clamped on the machine. A peeling knife peels apart the joint between the sole and the upper. The force required for peeling is measured as the peeling force, and the peel strength is calculated based on the peeling force and the width of the peeling knife.
The principle is as follows: the finished shoe, fitted with a shoe last, is clamped on the machine. A peeling knife peels apart the joint between the sole and the upper. The force required for peeling is measured as the peeling force, and the peel strength is calculated based on the peeling force and the width of the peeling knife.
Technical Parameters
- Capacity: 100 Kg
- Dimensions: 60×40×85 cm
- Accuracy: ±1%
- Net Weight: 50 kg
- Knife Width: 20±0.1 mm / 10±0.05 mm
- Knife Downward Speed: 20±2 mm/min
- Power Supply: AC 220 V, 50 Hz
