Digital Elmendorf Tearing Tester

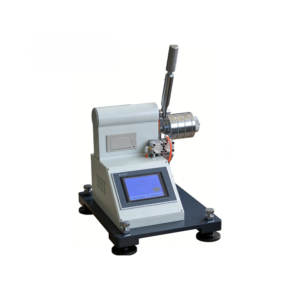

BF-FZ9.2 Digital Elmendorf Tearing Tester
Instrument Brief Introduction
Digital Elmendorf Tearing Tester ：This instrument features a user-friendly interface and is an intelligent device for determining the tearing performance of fabrics. It is mainly used to measure the average tearing strength of various woven fabrics and non-woven fabrics with a regular tearing direction; it is also applicable for the determination of the tearing strength of paper, plastic cloth, electrical tape and other materials.
BF-FZ9.2 Digital Elmendorf Tearing Tester
Instrument Brief Introduction
Digital Elmendorf Tearing Tester ：This instrument features a user-friendly interface and is an intelligent device for determining the tearing performance of fabrics. It is mainly used to measure the average tearing strength of various woven fabrics and non-woven fabrics with a regular tearing direction; it is also applicable for the determination of the tearing strength of paper, plastic cloth, electrical tape and other materials.
Main Technical Specifications
Test range: 0~16N, 0~32N, 0~48N, 0~64N, 0~80N, 0~96N, 0~112N, 0~128N (8 ranges for precise testing)
Test resolution: 0.01N
Indicated value error: Not exceeding ±1% (F.S)
Incision length: 20±0.2mm
Working air pressure: 0.5Mpa~0.7Mpa
Power supply: AC220V±10% 50Hz
Instrument dimension: 630×430×670mm
Test resolution: 0.01N
Indicated value error: Not exceeding ±1% (F.S)
Incision length: 20±0.2mm
Working air pressure: 0.5Mpa~0.7Mpa
Power supply: AC220V±10% 50Hz
Instrument dimension: 630×430×670mm
Applicable Standards
GB/T 3917.1-2009
ISO 13937-1-2000
EN ISO 13937-1-2000
BS EN ISO 13937-1-2000
DIN EN ISO 13937-1-2000
ASTM D1424-2009
FZ/T 60006-1991
ISO 9073-4-1989
GB/T 455-2002
ISO 1974-1990
FZ/T 75001-1993
JIS L1096-2010
ISO 13937-1-2000
EN ISO 13937-1-2000
BS EN ISO 13937-1-2000
DIN EN ISO 13937-1-2000
ASTM D1424-2009
FZ/T 60006-1991
ISO 9073-4-1989
GB/T 455-2002
ISO 1974-1990
FZ/T 75001-1993
JIS L1096-2010
