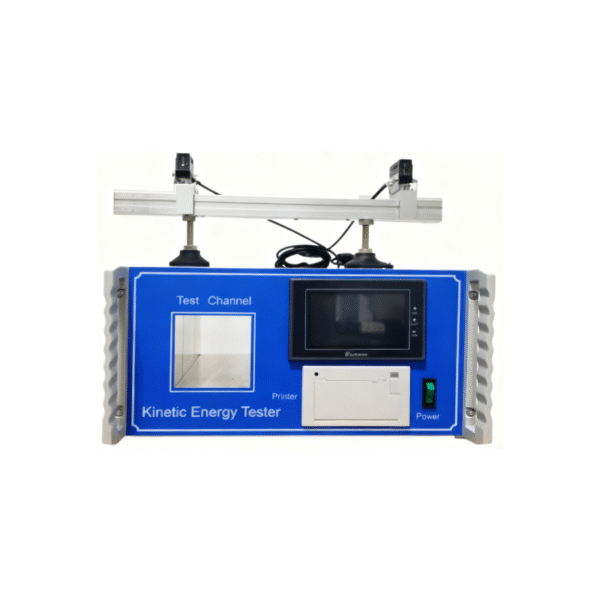

Model: BF-A164 Catapult Kinetic Energy Tester
Application:
This speed-measuring projectile kinetic energy tester is suitable for kinetic energy testing of projectiles, energy-stored projectile toys and spring-powered projectile toys, such as toy guns, etc.
Standard Configuration:
1 set of kinetic energy tester, 1 set of external sensor, 1 set of external sensor bracket, 1 power cord, 1 operation manual.
Compliant Standards:
ASTM F963-03, EN 71-03, GB 6675.2-2014 Clause 5.15
Performance Parameters
- Power Supply: AC 220 V / 5 W / Single-phase
- Maximum Timing: 15.000000 s
- Timing Range: 0.000001–15.000000 s
- Speed Display Range: 0.007 m/s – 10000.000 m/s
- Channel Input: Internal/External Channels (External Channel is Optional)
- Distance Between Front and Rear Sensors: 152.40 mm, with an Error of 0.1 mm
- Control Buttons: Touch Screen
- Printing Function: Standard RS232 Thermal Micro-Printer
- Test Result Storage: Stores Up to 5 Test Results
