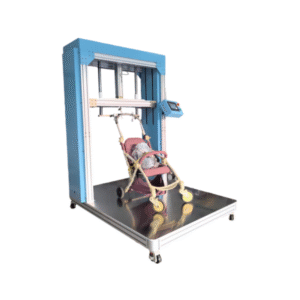

Stroller Lifting and Pressing Tester

Model: BF-A23  Stroller Lifting and Pressing Tester

Purpose
Stroller Lifting and Pressing Tester :This instrument is used to test the condition of baby stroller wheels after a period of operation and to check for any damage to the stroller frame.
Principle
The instrument uses a motor to drive two rollers, which in turn drive the belts on the rollers to move at a constant speed, simulating the actual movement of a baby stroller.
Edit Content

Model: BF-A23  Stroller Lifting and Pressing Tester

Purpose
Stroller Lifting and Pressing Tester :This instrument is used to test the condition of baby stroller wheels after a period of operation and to check for any damage to the stroller frame.
Principle
The instrument uses a motor to drive two rollers, which in turn drive the belts on the rollers to move at a constant speed, simulating the actual movement of a baby stroller.
  • Test Stroke: Reciprocating 120-150mm (Stroke for US or EU standards can be arbitrarily adjusted via screw rod)
  • Drive Mode: Pneumatic drive
  • Vertical Adjustment Range: MAX 500mm (Vertical power adjustment via motor-driven left and right screw rods)
  • Effective Height: MAX 600mm
  • Test Cycle Setting: 0~999,999 cycles, adjustable
  • Load Capacity: MAX 50 lbs
  • Test Object: Single-seat baby stroller
  • Machine Dimensions (L×W×H): 1650×1100×1900 mm
  • Compliant Standards: EN 1888:2012(E) 8.10.6.2.2 & Figure 37; GB 14748-2006 5.12
